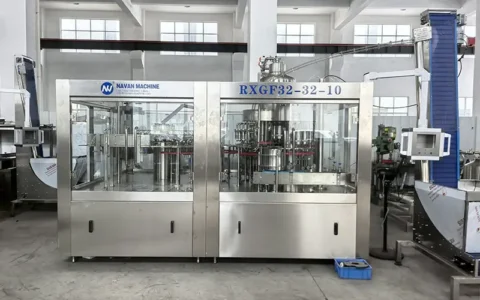

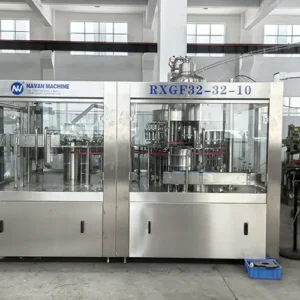

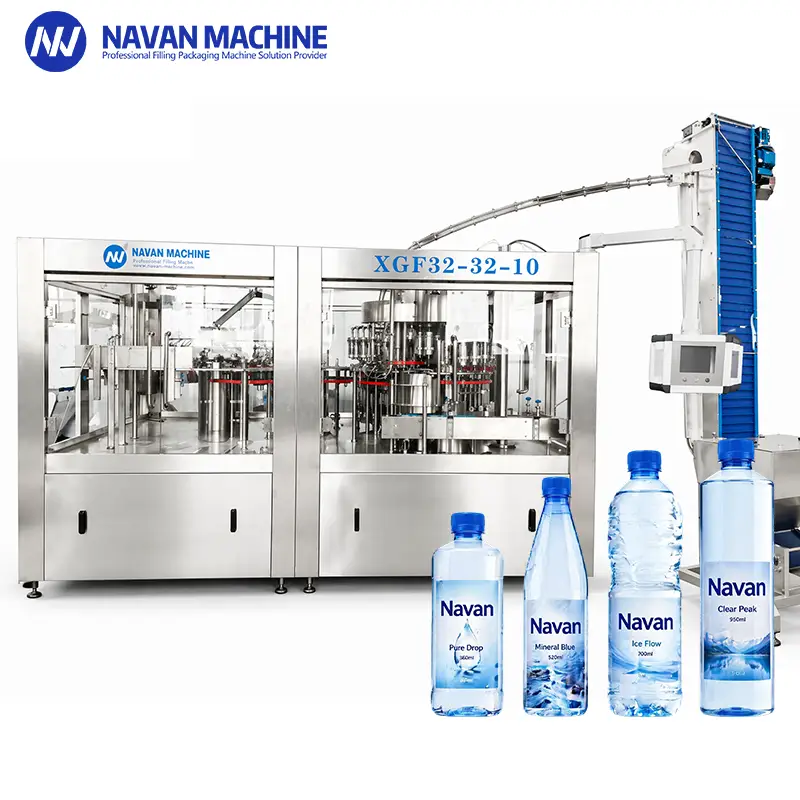

XGF 32-32-10 Automatic Water Bottling Equipment for PET Bottled Water
The Navan XGF 32-32-10 water bottling equipment is engineered specifically for large-scale beverage manufacturing plants and high-volume commercial water producers.
Model: XGF 32-32-10
Capacity: 16,000 – 17,000 BPH
Bottle Size: 100-2000ml
Bottle Type: PET Bottles
* We will reply to you within a maximum of 24 hours

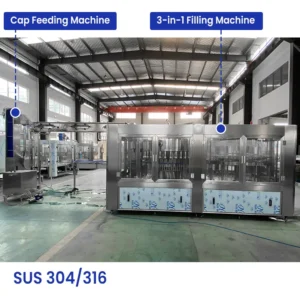

3-in-1 Monoblock Design
Integrates bottle washing, gravity filling, and rotary capping in one rigid chassis, saving significant factory floor space.

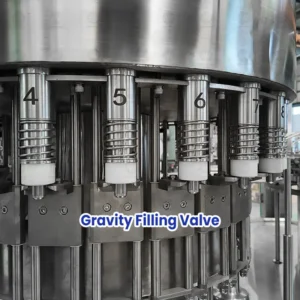

Precision Filling Valve
Utilizes spring-structured 304 stainless steel valves to achieve rapid, zero-drip filling across your automatic water filling machine.
PLC Touch Screen Control
Features a brand PLC panel for real-time operation and quick capacity adaptation via quick-change changeover parts.
Energy Efficient Operation
Driven by a 5.5 kW main motor that delivers a stable 17,000 BPH performance on your 3 in 1 water filling monoblock.
Technical Specifications
| Parameter | XGF 32-32-10 Water Bottling Equipment |
|---|---|

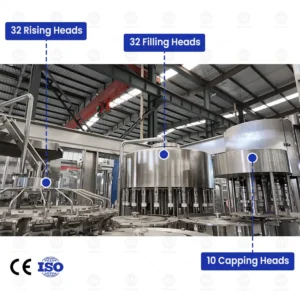

| Monoblock Configuration | 32 Rinsing Heads / 32 Filling Valves / 10 Capping Heads |
| Production Capacity (500ml) | 16,000 – 17,000 Bottles/Hour (BPH) |
| Applicable Bottle Volume | 100ml – 2000ml (Option up to 2500ml) |
| Applicable Bottle Diameter | Φ50mm – Φ100mm |
| Applicable Bottle Height | H = 150mm – 340mm |
| Cap Type & Neck Spec | Plastic Screw Cap (Φ20mm – Φ50mm) |
| Main Motor Power | 5.5 kW |
| Power Supply Standard | 220V ~ 480V, 3-Phase, 50Hz / 60Hz (Customizable) |
| Machine Dimensions (L W H) | 3.8m × 2.8m × 2.6m |
| Machine Weight | 6,500 kg |
| Frame Material | SUS304 Stainless Steel |
Detail Display

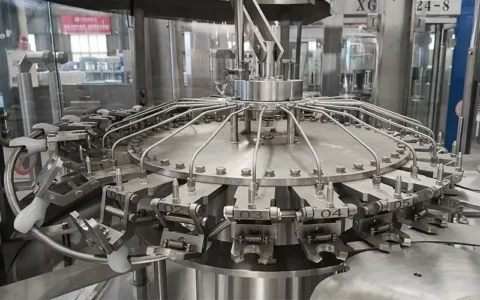

Rinsing Station
Equipped with 32 SUS304 stainless steel clamps that grip bottle necks and invert them 180° for deep internal cleaning with zero dead zones.

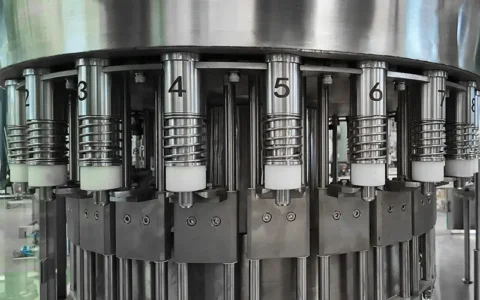

Filling Station
Houses 32 food-grade SUS304 gravity filling valves; effortlessly switches to different bottle capacities via quick-change changeover parts.

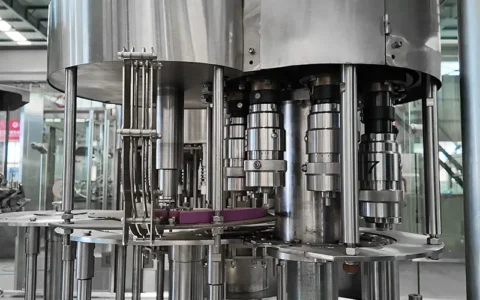

Capping Station
Features 10 magnetic torque capping heads for precise cap screwing, easily adapted to cap neck variations using customized capping molds.
Frequently Asked Questions
Operators can switch bottle sizes by changing the star-wheel changeover parts and adjusting the height of the filling and capping stations.
Standard manufacturing for the XGF 32-32-10 monoblock typically takes 30 to 45 business days, depending on electrical specifications and capping designs.
The monoblock uses mechanical gravity valves with air-return tubes made of SUS304 stainless steel to ensure uniform liquid levels without dripping.
We provide a 12-month full warranty, lifetime technical support, spare parts availability, and optional engineer dispatch for installation and operator training.
The machine includes dedicated CIP cleaning circulation connectors and smooth SUS304 contact surfaces, enabling fast sanitizing solution or hot water flushing.
