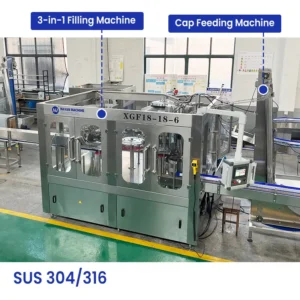

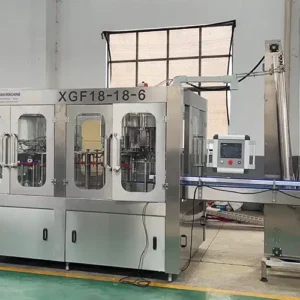

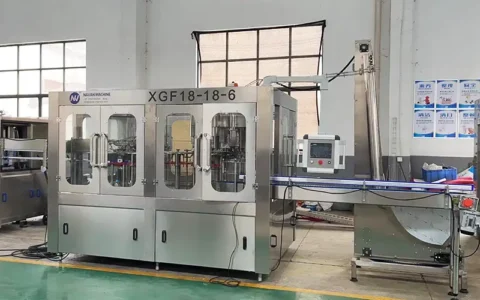

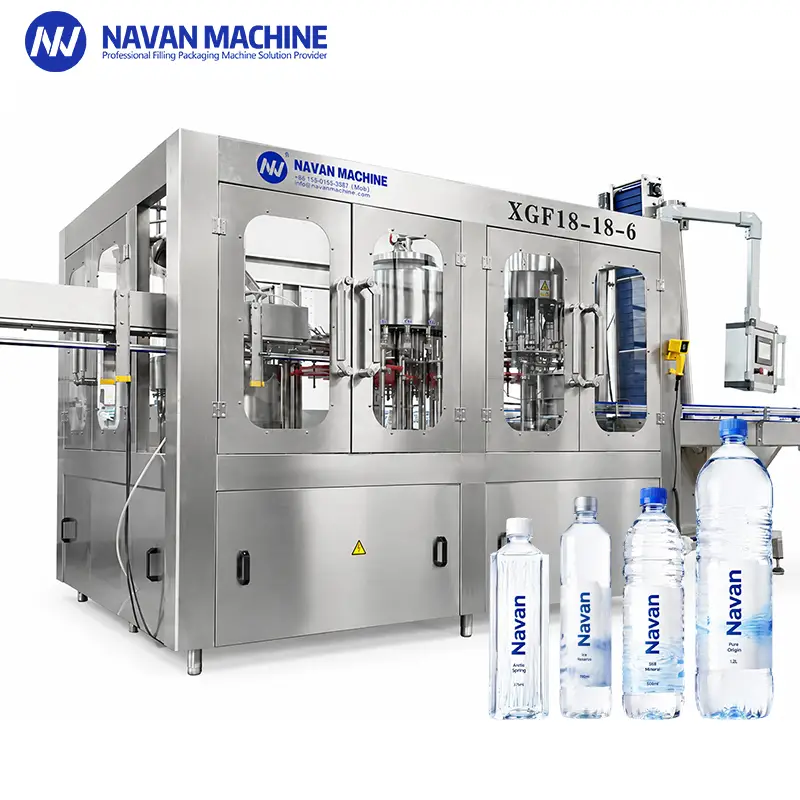

XGF 18-18-6 Automatic Mineral Water Filling Machine for PET Bottles
The Navan XGF 18-18-6 mineral water filling machine is engineered for medium-sized beverage plants and bottled water producers.
Model: XGF 18-18-6
Capacity: 6,000 – 7,000 BPH
Bottle Size: 100-2000ml
Bottle Type: PET Bottles
* We will reply to you within a maximum of 24 hours
3-in-1 Monoblock Design
Integrates bottle washing, gravity filling, and rotary capping in one frame, minimizing footprint and lowering labor costs.

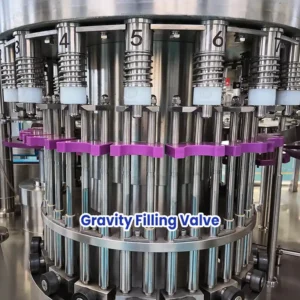

Precision Filling Valve
Equipped with spring-structured 304 stainless steel valves to ensure rapid filling without leakage or splashing.
PLC Touch Screen Control
Centralized touch screen panel simplifies operation across your PET bottle water packing line, enabling quick capacity adjustments.
Energy Efficient Performance
Powered by a 4.0 kW main motor that delivers stable 7,000 BPH performance with low energy consumption on your automatic water bottling line.
Technical Specifications
| Parameter | XGF 18-18-6 Mineral Water Filling Machine |
|---|---|

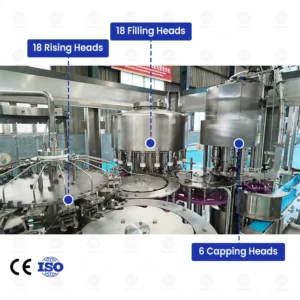

| Monoblock Configuration | 18 Rinsing Heads / 18 Filling Valves / 6 Capping Heads |
| Production Capacity (500ml) | 6,000 – 7,000 Bottles/Hour (BPH) |
| Applicable Bottle Volume | 100ml – 2000ml (Option up to 2500ml) |
| Applicable Bottle Diameter | Φ50mm – Φ100mm |
| Applicable Bottle Height | H = 150mm – 340mm |
| Cap Type & Neck Spec | Plastic Screw Cap (Φ20mm – Φ50mm) |
| Main Motor Power | 4.0 kW |
| Power Supply Standard | 220V ~ 480V, 3-Phase, 50Hz / 60Hz (Customizable) |
| Machine Dimensions (L W H) | 2.58m × 2.1m × 2.2m |
| Machine Weight | 3,500 kg |
| Frame Material | SUS304 Stainless Steel |
Detail Display

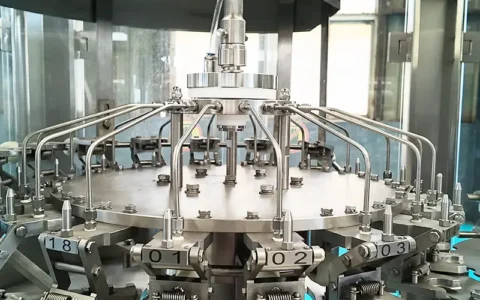

Rinsing Station
Features 18 SUS304 stainless steel clamps that hold bottle necks and flip them 180° for thorough inner rinsing without residue.

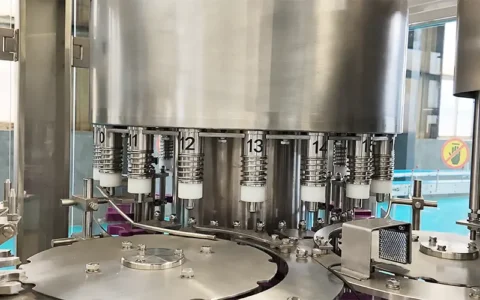

Filling Station
Houses 18 gravity filling valves made of food-grade SUS304; easily adapts to different bottle sizes using quick-change changeover parts.

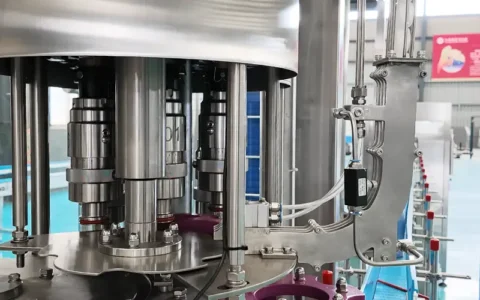

Capping Station
Uses 6 magnetic torque capping heads for secure plastic cap sealing, easily adjusted for bottle neck variations using capping molds.
Frequently Asked Questions
You can adapt the machine to different bottle volumes by replacing the star-wheel changeover parts and adjusting the height of the filling and capping stations.
Standard manufacturing for the XGF 18-18-6 monoblock typically takes 30 to 45 business days, depending on electrical standards and customized cap specs.
The unit utilizes mechanical gravity filling valves equipped with air-return tubes to ensure precise liquid height and eliminate dripping during continuous filling.
We provide a 12-month warranty on core components, lifetime technical assistance, spare parts support, and optional on-site engineer installation and training services.
The machine includes CIP circulation connections and features smooth SUS304 stainless steel surfaces, allowing fast hot water or sanitizing solution flushing.
