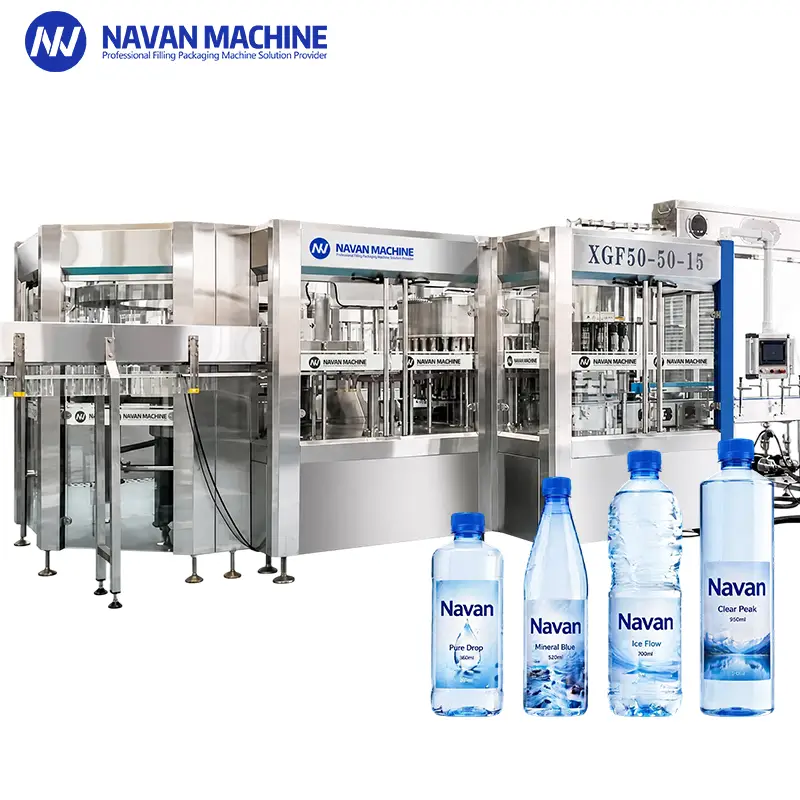

XGF 50-50-15 High-Speed Industrial Water Filling Machine for PET Bottles
The Navan XGF 50-50-15 industrial water filling machine is engineered specifically for large-scale water production plants and high-volume commercial beverage factories.
Model: XGF 50-50-15
Capacity: 23,000 – 24,000 BPH
Bottle Size: 100-2000ml
Bottle Type: PET Bottles
* We will reply to you within a maximum of 24 hours

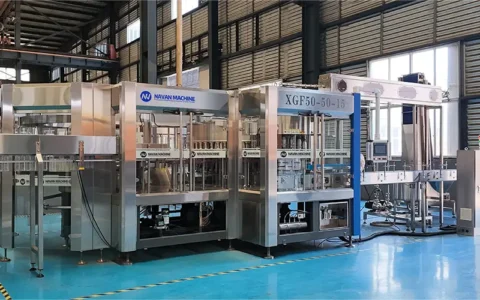

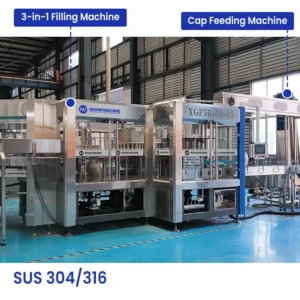

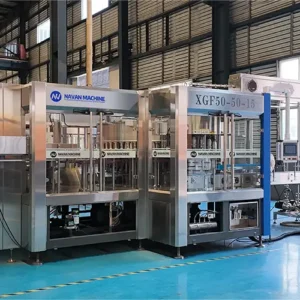

3-in-1 Monoblock Design
Combines bottle rinsing, gravity filling, and capping into a unified compact frame to save floor space
Precision Filling Valve
Uses spring-structured 304 stainless steel valves to ensure fast, zero-drip filling across your 3 in 1 water filling monoblock
PLC Touch Screen Control
Features a centralized touch PLC panel for real-time monitoring and swift adaptation with quick-change changeover parts
Energy Saving & High Efficiency
Driven by an 11.0 kW main motor that supports continuous 24,000 BPH operation on your PET bottle water packing line
Technical Specifications
| Parameter | XGF 50-50-15 Industrial Water Filling Machine |
|---|---|

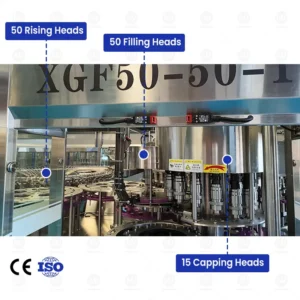

| Monoblock Configuration | 50 Rinsing Heads / 50 Filling Valves / 15 Capping Heads |
| Production Capacity (500ml) | 23,000 – 24,000 Bottles/Hour (BPH) |
| Applicable Bottle Volume | 100ml – 2000ml (Option up to 2500ml) |
| Applicable Bottle Diameter | Φ50mm – Φ100mm |
| Applicable Bottle Height | H = 150mm – 340mm |
| Cap Type & Neck Spec | Plastic Screw Cap (Φ20mm – Φ50mm) |
| Main Motor Power | 11.0 kW |
| Power Supply Standard | 220V ~ 480V, 3-Phase, 50Hz / 60Hz (Customizable) |
| Machine Dimensions (L W H) | 5.45m × 3.3m × 2.6m |
| Machine Weight | 9,800 kg |
| Frame Material | SUS304 Stainless Steel |
Detail Display
Rinsing Station
Features 50 SUS304 stainless steel clamps that hold bottle necks and invert them 180° for deep interior rinsing with zero dead zones

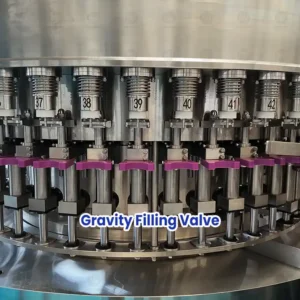

Filling Station
Houses 50 gravity filling valves made of food-grade SUS304; effortlessly adapts to different bottle volumes via quick-change changeover parts
Capping Station
Equipped with 15 magnetic torque capping heads for precise thread sealing without cap damage, easily adjustable via specialized capping molds
Frequently Asked Questions
Operators can adapt to different bottle volumes by replacing the star-wheel changeover parts and adjusting the height of the filling and capping stations.
Standard XGF 50-50-15 monoblocks are manufactured within 30 to 45 business days, depending on electrical customizations and cap specifications.
The unit utilizes spring-actuated 304 stainless steel gravity valves with air-return pipes to ensure uniform filling levels without liquid splashing
We provide a 1-year full warranty, life-long technical support, quick spare parts supply, and optional engineer dispatch for on-site installation and staff training.
The machine comes with built-in CIP circulation ports and smooth SUS304 contact surfaces, allowing fast sanitizing solution or hot water flushing
