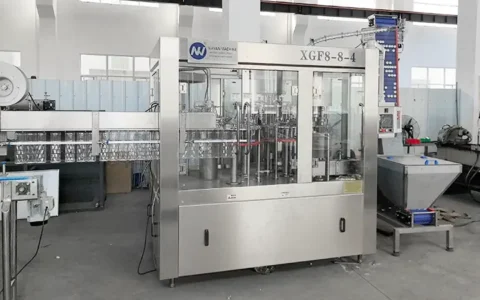

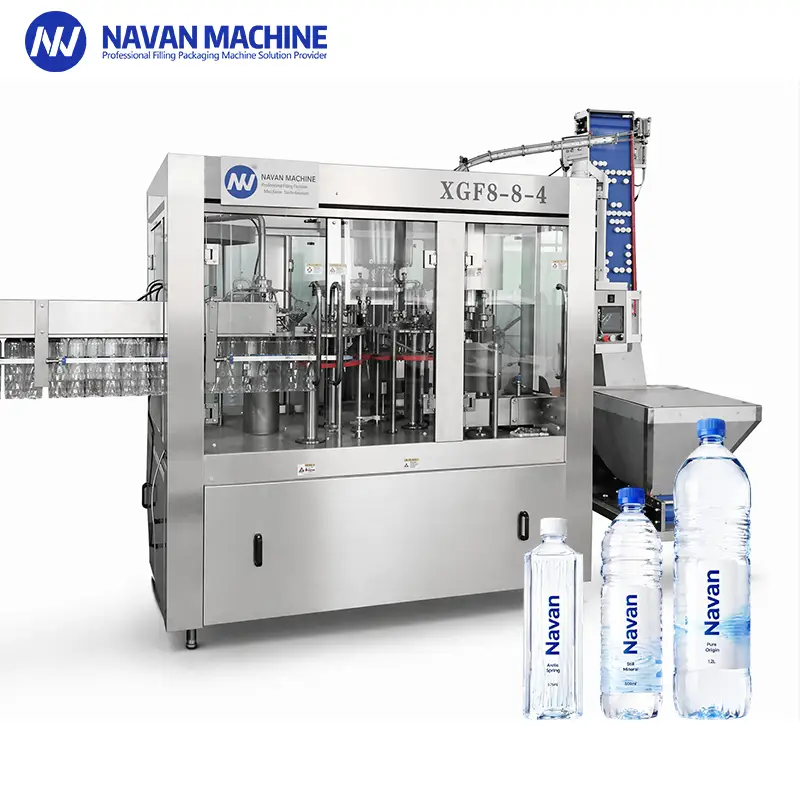

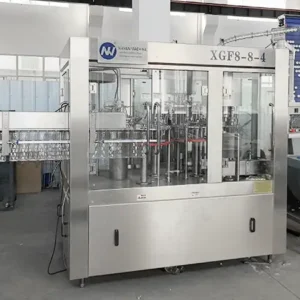

XGF 8-8-4 Automatic Water Filling Machine for PET Bottled Water
The Navan XGF 8-8-4 automatic water filling machine is engineered specifically for small to medium-sized drinking water production plants and start-up beverage facilities.
Model: XGF 8-8-4
Capacity: 2,500-3,000 BPH
Bottle Size: 100-2000ml
Bottle Type: PET Bottles
* We will reply to you within a maximum of 24 hours

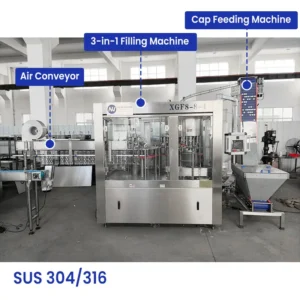

3-in-1 Monoblock Design
Integrates bottle rinsing, gravity filling, and cap screwing into one compact frame, optimizing factory floor space and reducing labor

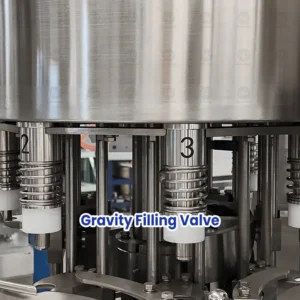

Precision Filling Valve
Spring-structured 304 stainless steel filling valves prevent dripping and dead angles, delivering precise liquid levels consistently
PLC Touch Screen Control
Brand-name PLC system controls the line, allowing quick adjustment for bottle volume variations using quick-change changeover parts
Energy Saving & High Efficiency
ptimized 1.9 kW main motor power design lowers energy consumption while maintaining peak stability on your PET bottle packing line.
Technical Specifications
| Parameter | XGF 8-8-4 Automatic Water Filling Machine |
|---|---|

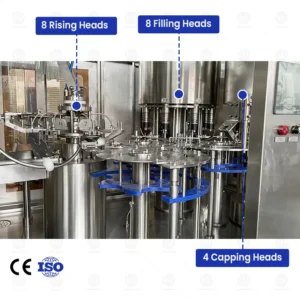

| Monoblock Configuration | 8 Rinsing Heads / 8 Filling Valves / 4 Capping Heads |
| Production Capacity (500ml) | 2,500 – 3,000 Bottles/Hour |
| Applicable Bottle Volume | 100ml – 2000ml (Option up to 2500ml) |
| Applicable Bottle Diameter | Φ50mm – Φ100mm |
| Applicable Bottle Height | H = 150mm – 340mm |
| Cap Type & Neck Spec | Plastic Screw Cap (Φ20mm – Φ50mm) |
| Main Motor Power | 1.9 kW |
| Power Supply Standard | 220V ~ 480V, 3-Phase, 50Hz / 60Hz (Customizable) |
| Machine Dimensions (L \ W \ H) | 1.9m × 1.42m × 2.0m |
| Machine Weight | 1,500 kg |
| Frame Material | SUS304 Stainless Steel |
Detail Display

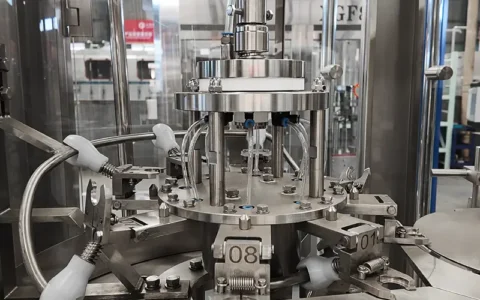

Rinsing Station
Features 304 stainless steel clamps that grip the neck to invert bottles, using internal water nozzles to thoroughly rinse bottle interiors without dead zones.

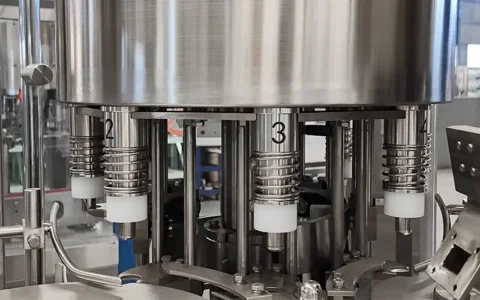

Filling Station
Adopts gravity filling valves made of food-grade SUS304; easily adapts to different bottle capacities by simply swapping quick-change changeover parts.

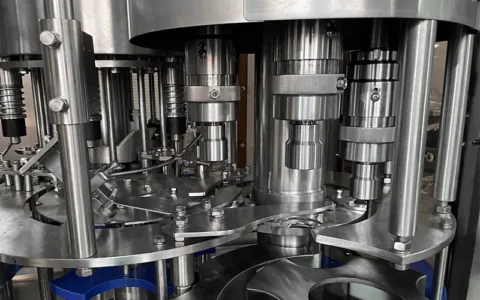

Capping Station
Uses magnetic torque capping heads for reliable plastic cap sealing without damage, easily adjustable for various bottle necks using specialized capping molds.
Frequently Asked Questions
You can adapt to different bottle volumes by replacing the changeover star-wheels and adjusting the height of the filling/capping heads. For different cap sizes, simply swap the capping molds
Standard XGF 8-8-4 machines are typically produced within 30 to 45 working days. Custom voltage settings and special bottle neck designs may require additional lead time.
We provide a 1-year warranty on core components, lifetime technical support, spare parts supply, and optional on-site engineer installation and training services.
Bottling Line
We are committed to turnkey projects for filling production lines. If you need any machines on the production line, you can contact us
